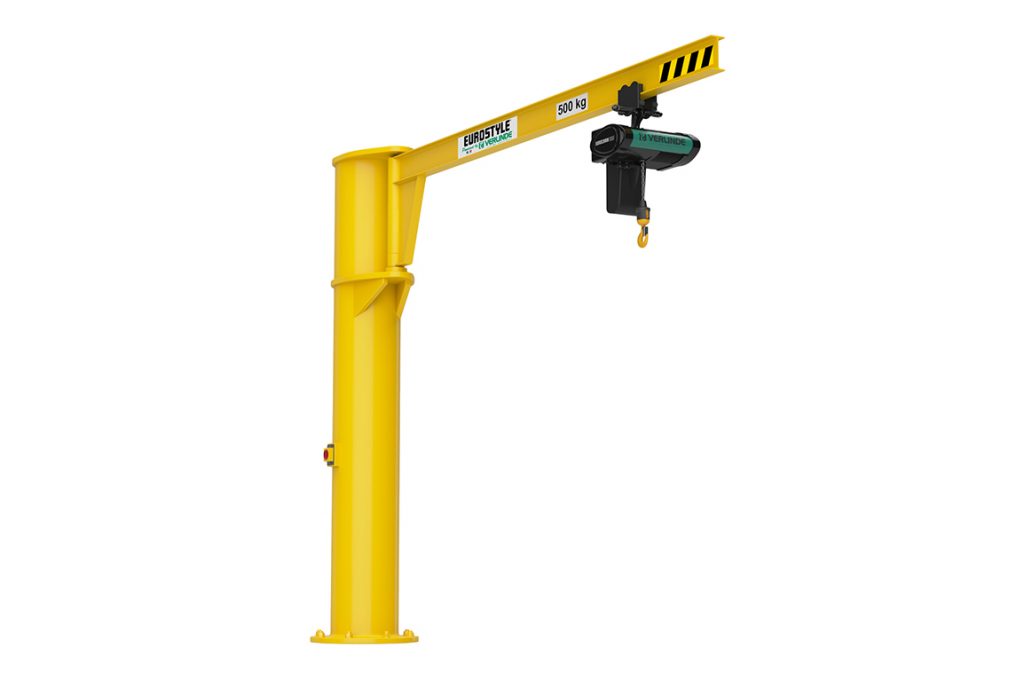

Eurostyle VFI

For handling loads from 125 to 2000 kg

EUROSTYLE VFI lifting system is made to handle loads ranging from 125 to 2000 kg, offering versatility for different industrial applications. With spans from 2-7 meters depending on the load and height under the beam of 3 meters, it ensures efficient and safe material handling while adapting to different operational needs.

Technical Characteristics

Standard under beam clearance = 2,5 m, adjustable higher or lower, accordingly modifying overall height measurement; for clearance higher than 4m, contact us
EUROSYSTEM ALU hollow-section, aluminium pillar jib crane for indoor use, partial 270° rotation, with overbraced beam.
This type of jib crane cannot be motorised
Theoretical deflection under nominal load = approximately 1/250th of the span + height without exceeding 1/100th of the span in itself
RAL 1028 yellow polyurethane finish for the pillar
A hoist trolley is provided along with the equipment
The power supply cable is provided
Maximum hoisting speed = 16 m/min

Options Available

Lockable main switch
Installation template + anchor rods (or base plate for chemical anchors, keeping its limitations in mind)
Rotation slowing device (adaptable without welding or mechanical intervention)
Adjustable rotation stops
Single or multi-position rotation lock
Electric or manual hoist
